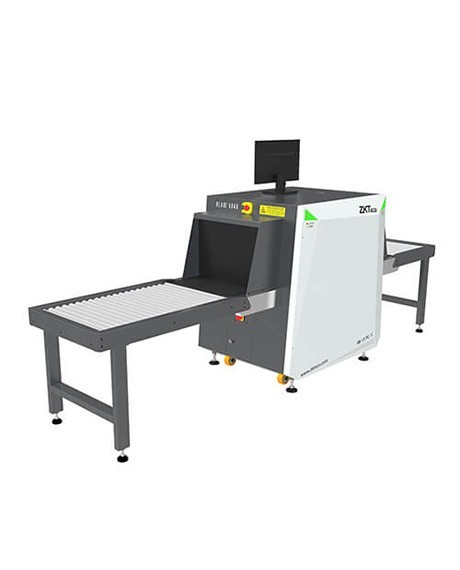

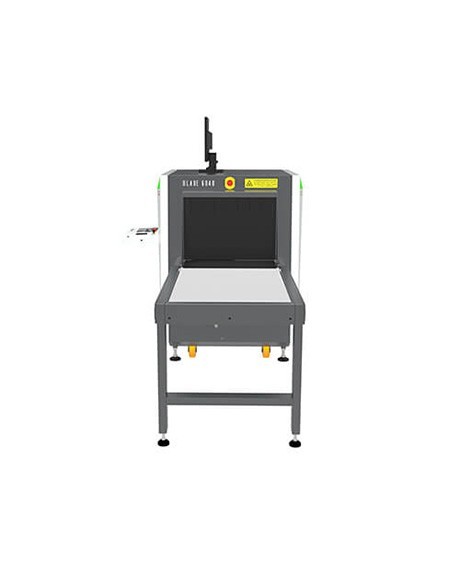

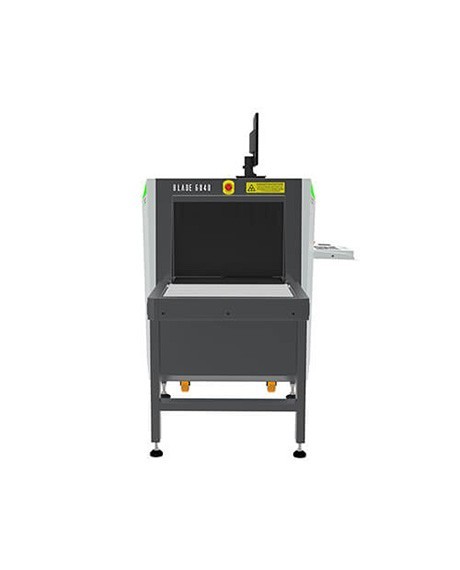

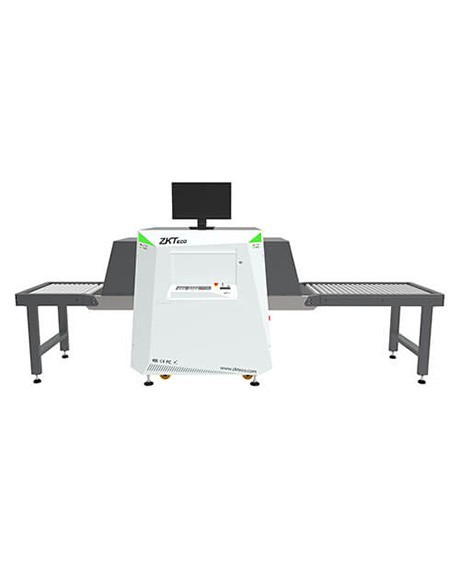

ZKTeco BLADE6040 X-Ray machine
BLADE6040 is an X-ray baggage screening system with a tunnel size of 610 * 420mm that provides effective inspection of mail, carry-on baggage, checked baggage, and other items. It helps identify suspicious items such as weapons, liquids, explosives, pharmaceuticals, knives, firearms, bombs, toxic substances, flammable materials, ammunition, and other dangerous objects that may pose a potential security risk due to their atomic number identification.
High image quality combined with automatic identification of suspicious objects allows the operator to quickly and effectively assess the contents of any baggage.
| Technical Specifications | |
| Tunnel Dimensions (W*H) | 610*420 mm |
| Conveyor Speed | 0.20 m/sec. ~0.40 m/sec |
| Maximum Loading Weight | max. 200kg |
| Gap Definition | Horizontal Φ1.0mm Horizontal Φ2.0mm |
| Steel Penetration | 38mm guaranteed; 40mm typical |
| Wire Resolution | 38AWG guaranteed; 40AWG typical |
| Dual-energy Detector | Yes |
|
Number of Colors in an X-Ray Image |
3 |
| Dimensions (L*W*H) | 1701mm*910mm*1305mm |
| Package Dimensions (L*W*H) | 2100*1200*1600 mm |
| Package Weight | 750kg |
| Film Security | ASA/ISO1600 film safety standard |
| Single Control Dose Amount | ≤1.0μGy |
| Work Environment | |
| Operating Ambient Temperature | -10°C to +45°C |
| Storage Ambient Temperature | -20°C to +60°C |
| Humidity Level | 5-95%, uncondensed |
| Power Supply |
230 VAC +/- 10% / 60/50 Hz (EU) 110 VAC +/- 10% / 60/50 Hz (US) |
| Power Consumption | 700W |
| Sound Pressure | <51.8dB (A) |
| X-ray Generator | |
| Tube Current | 0.5-0.1 mA (adjustable) |
| Anode Voltage | 150-170 kV (adjustable) |
| Generator Cooling | Gasket Oil Cooling / 100% |
| Computer Specifications | |
| Processor |
I7-7700 |
| Monitor | 21” LED color |
| Memory |
8 GB DDR4 |
| Hard Drive |
240GB SSD + 1TB HDD |
|
Graphics Card: |
NVIDIA GeForce GTX 1660 Ti |
| USB Port | 4 Port |
| Software Features | Perfect View (PV) |
| Black / White (B/W) | |
| Pseudo Colors (PS) | |
| Inverse View (IN) | |
| High Penetration (HP) | |
| Real-time image processing | |
| Image Zoom (64x) | |
| Previous Baggage Image | |
| Programmable Function Keys | |
| Luggage Counter | |
| Date/Time Display | |
| Threat Image Projection (TIP) | |
| Suspicious Automatic Identification | |
| Remote Cloud Control | |
| Through the Metal Detector | |
| Monitor Transition Status |
