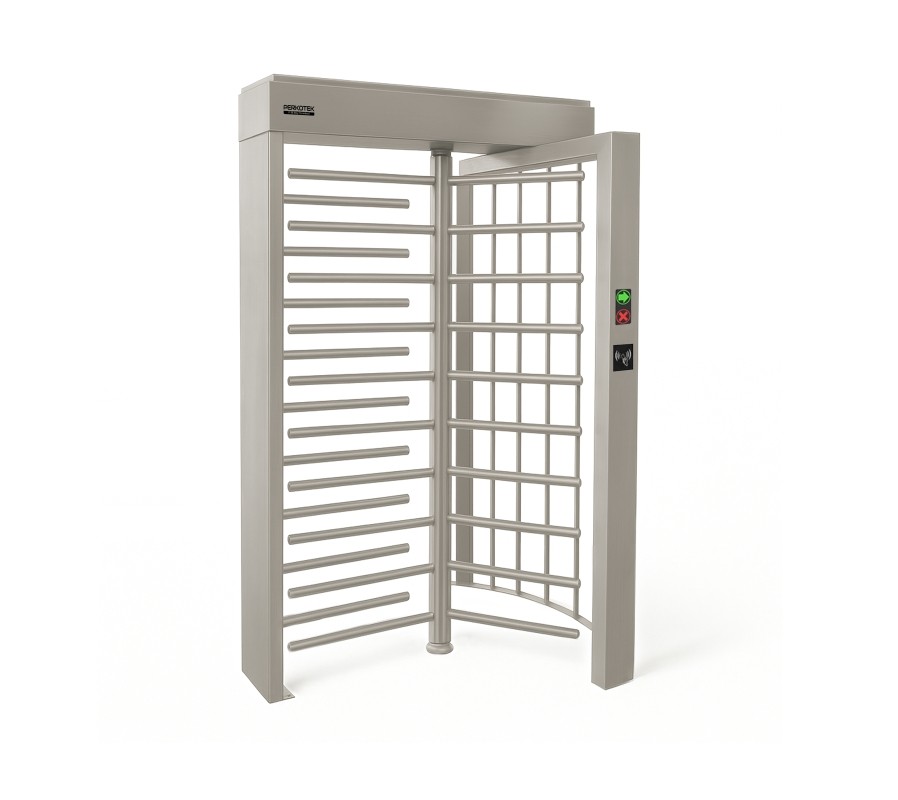

AVAX P56 Full-Height Stainless Steel Turnstile

Body: Manufactured from 304 stainless steel.
Power Specifications: Operates with 100–240 V AC input.
Power Consumption: 60 watts.
Operating Temperature: Functions reliably between –30°C and +80°C.
Turnstile Dimensions: 1400 mm × 1200 mm × 2200 mm
Installed Weight: 160 kg
Turnstile System: Microprocessor-controlled, supports bi-directional operation, allowing only one person per pass. A data output is available on the exit side. The output can be digital or transmitted directly to a computer. In case of power failure, the system automatically switches to free-pass mode.
Control System: Easily integrates with access control units and peripheral devices. A single computer can control up to 256 turnstiles. Triggering can be done using 3–50 V DC pulse, dry contact, CMOS, TTL, or direct computer control via RS232/RS422/RS485.
Emergency Mode: When connected to fire, earthquake or emergency alarm systems, it automatically switches to free-pass mode.
Indicator: Equipped with a three-light indicator. When ready for passage, the green arrow blinks. When access is granted, the green arrow stays lit. During passage, the opposite direction is blocked with a red “X” symbol.
Unique Design: Provides smooth and silent passage with a decorative and elegant appearance.
Warranty: 2 years.
