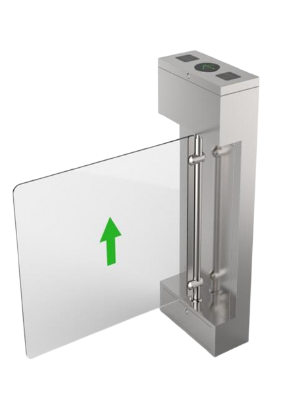

AVAX C90

Operating Modes

• Single directional passage (configured direction)

• Bidirectional single passage

• Free passage in the configured direction

• Permanently free or permanently locked mode

Technical Specifications

• Turnstile Housing: Made of AISI 304 stainless steel, suitable for outdoor conditions.
• Passage Width: 90 cm (80 cm arm + 10 cm side clearance)
• Throughput Capacity: 4 passages per minute
• Power Supply: 220–240 V AC
• Operating Voltage: 24 V DC
• Maximum Power Consumption: 50 W
• Frequency: 50–60 Hz
• Operating Temperature: -25 °C to +70 °C
• Dimensions (excluding arms): 440 × 200 × 1190 mm
• Approximate Weight: 35 kg
